Freight elevator with mesh shaft

Freight elevator with mesh shaft is a mechanical equipment for cargo lifting and lowering powered by hydraulic cylinders, no need to dig a pit. The form of rail cargo lift is diversified, and it is divided into two types, includes one piston and two piston. Freight elevator with mesh shaft operate safely through chains and wire steel ropes, with a maximum load capacity of 30ton and a lifting height of up to 20m. It’s overhead height is unlimited and can be customized according to needs, which is convenient, fast and practical.

Buy Freight Elevator With Mesh shaft Guide

A Freight elevator with mesh shaft is a type of freight elevator used to transport goods and materials vertically between different levels of a building or warehouse using railway tracks. These lifts come in various sizes and load capacities and are typically operated by a hydraulic or mechanical system. They are designed to make the transportation of heavy materials faster, safer, and more efficient.

Freight elevator with mesh shaft is mainly used for all kinds of goods transported between the upper and lower layer, the narrow space of three-dimensional garage and underground garage high-rise to excavation pit site, layer height can not reach the requirements of the goods and other occasions difficult to solve falling, upper and lower layer door interlocking protection equipment hydraulic system products, each floor and lifting table, the working table can be set button, realize multi point control.

Cargo lifts can be classified based on their lifting capacity, lifting height, and size. The most common types include: One piston rail cargo lift, Two piston rail cargo lift, Rail cargo lifts with mesh shaft, Rail cargo lifts with steel board shaft, Rail cargo lifts with shutter doors, Rail cargo lifts with rapid doors.

The cost of a freight elevator with mesh shaft depends on various factors, including its load capacity, type, size, and installation requirements. On average, a standard freight elevator with mesh shaft can cost anywhere from $3,500 to $10,000 or more. However, the price can increase depending on the lift’s specifications,appearance and customization needs.

Installing a freight elevator with mesh shaft requires expertise and knowledge of the specific lift’s requirements and the building’s structural design. It is crucial to ensure that avoid damage to the lift and accidents during installation. The following are some general steps for installation a rail cargo lift: Design and manufacture the specific lift. Site inspection and preparation. Install the lift’s rails and platform, hydraulic or mechanical connection. Testing and commissioning.

Regular maintenance is crucial for the safe and efficient operation of a cargo lift. The maintenance requirements will depend on the specific type of lifts. The following are some general tips to maintain your cargo lift:Conduct regular inspection. Lubricate the lift’s moving parts to prevent corrosion. Check any loose bolts or screws. Clean the lift’s platform and rails to remove dirt and debris. Schedule annual maintenance and service checks with a qualified technician.

طلب

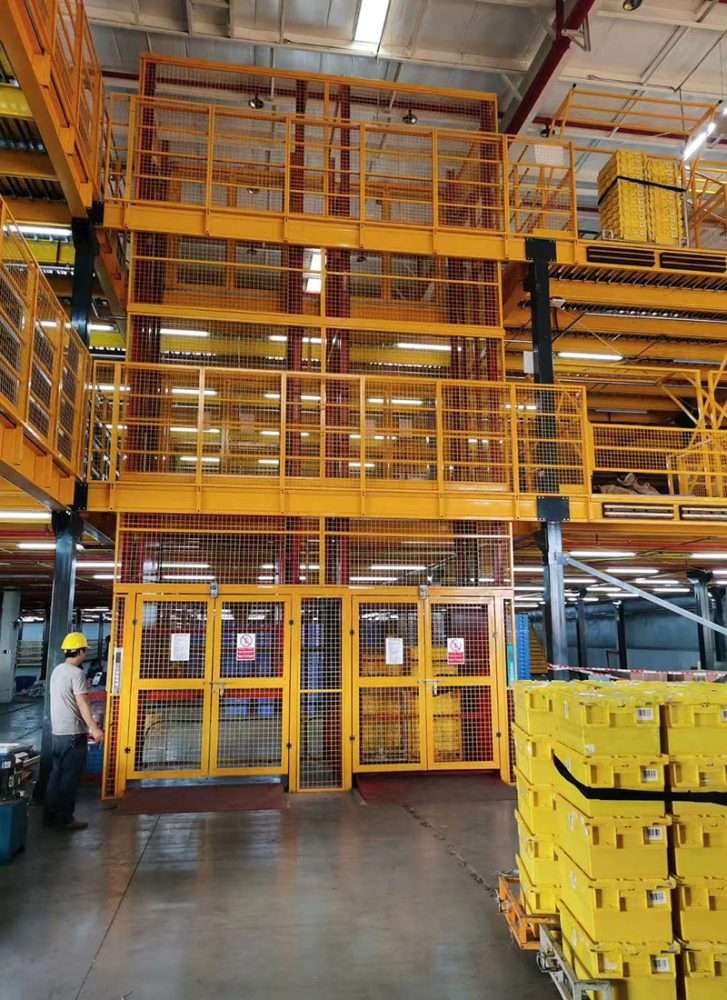

Freight elevator with mesh shaft are widely used in the chemical plants,power plants,nuclear factories ,explosives and other explosion-proof enterprises.
Tebo-Lift-Rail cargo-mesh shaft-application
Tebo-Lift-Rail cargo-mesh shaft-application

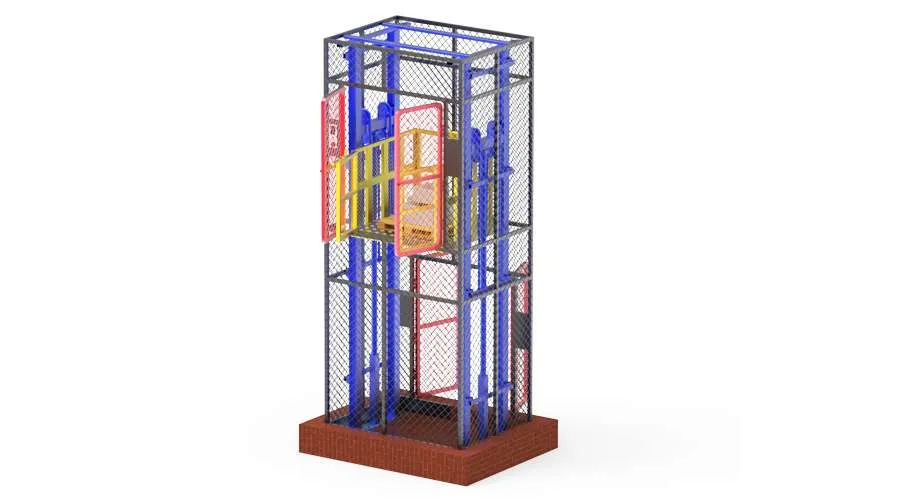

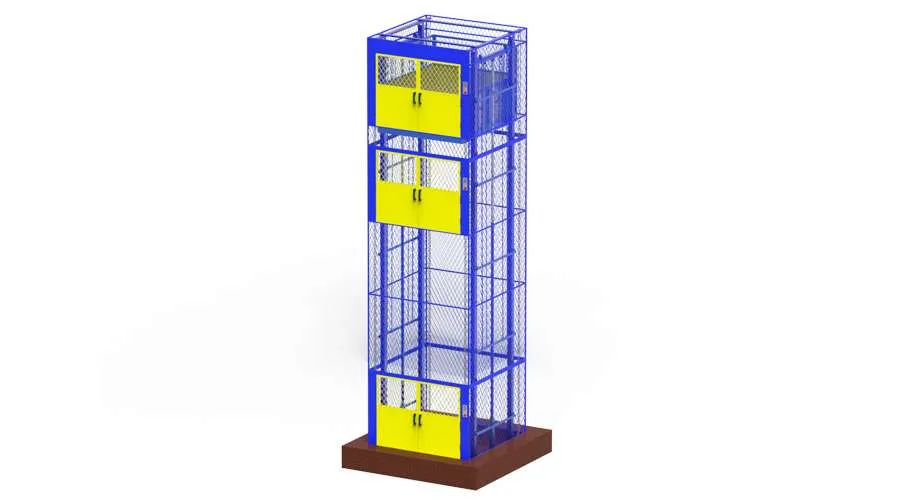

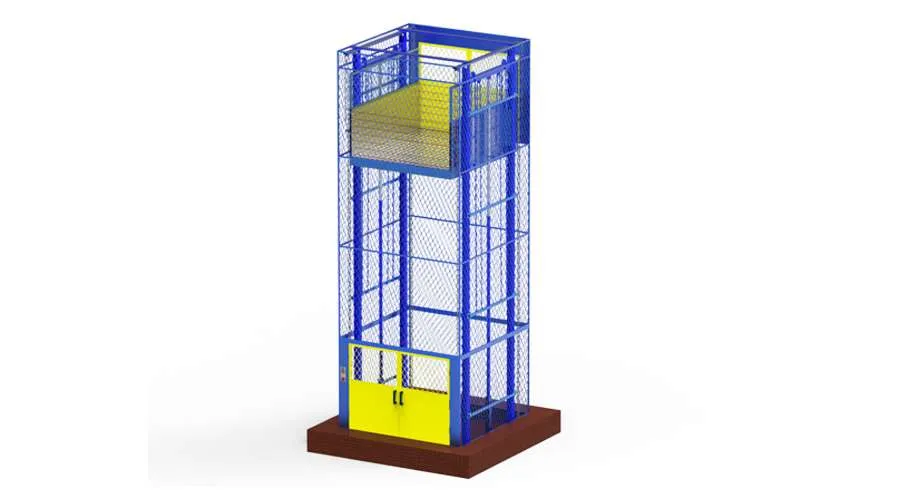

تصميم مخصص ثلاثي الأبعاد

يمكن أن يساعد التصميم المخصص ثلاثي الأبعاد العملاء على فهم المنتج بشكل أفضل ، وفي نفس الوقت يمكن تخصيص المنتج وفقًا لمعايير مختلفة.
Goods Elevator Guide Rails

حدود

نموذج Capacity(KG) Traveling height(mm) Platform size(WxD) مدخلات الطاقة (فولت)
TBC03-3 3000~4000 3000 (2200~3000)mmx(5000~6000)mm 110V~460V
TBC03-4 3000~4000 3000 (2200~3000)mmx(5000~6000)mm 110V~460V
TBC03-5 3000~4000 3000 (2200~3000)mmx(5000~6000)mm 110V~460V
TBC03-6 3000~4000 3000 (2200~3000)mmx(5000~6000)mm 110V~460V
TBC03-7 3000~4000 3000 (2200~3000)mmx(5000~6000)mm 110V~460V
TBC03-8 3000~4000 3000 (2200~3000)mmx(5000~6000)mm 110V~460V
TBC03-9 3000~4000 3000 (2200~3000)mmx(5000~6000)mm 110V~460V
TBC03-10 3000~4000 3000 (2200~3000)mmx(5000~6000)mm 110V~460V

ميزة الميزات

✅Large capacity, the maximum loading capacity can up to 100ton.
✅ مناسبة للبيئات المختلفة والرفع للخدمة الشاقة.
✅Flexible to design and production, can be customized.
✅التكوين القياسي الكامل ، التشغيل المستقر.
✅Durable, corrosion-resistant high-quality steel.
✅ صيانة بسيطة ، تكلفة منخفضة.
✅ميزات سلامة صارمة.
✅ بسيط للتثبيت.

pump station
AC contactor
remote control
power
limit switch
Circuit breaker

عزز إنتاجيتك مع حلولنا.

قم بتحسين مناولة المواد الخاصة بك من خلال حلولنا المتقدمة. تواصل معنا للحصول على دعم مخصص.

توفر Tebolift تصميمات مخصصة لحلول الرافعات الجسرية التي تلبي المتطلبات المحددة للصناعات المختلفة. لديهم فريق من المصممين ذوي الخبرة الذين يمكنهم العمل مع العملاء لتطوير أنسب حلول الرافعات بناءً على احتياجاتهم وميزانيتهم.

تقدم Tebolift حلول رافعة جسرية عالية الجودة متينة وموثوقة. منتجاتها مصنوعة باستخدام أحدث التقنيات وهي مصممة لتحمل الاستخدام الكثيف لفترات طويلة. كما أنها تأتي مع شهادات CE ، و FDA ، و ISO ، و SGS ، مما يضمن جودة عالية.

توفر Tebolift خدمات التركيب والصيانة الاحترافية للرافعات الجسرية. لديهم فريق من الفنيين ذوي الخبرة الذين يمكنهم تركيب وصيانة الرافعات الجسرية للتأكد من أنها تعمل في أفضل حالاتها. كما أنها توفر تدريبًا في الموقع للمستخدمين النهائيين للتأكد من فهمهم لكيفية تشغيل الرافعة بأمان.

يقدم فريق الخبراء التقنيين في Tebolift الدعم للعملاء قبل الشراء وبعده. يقدمون المشورة وخيارات استكشاف الأخطاء وإصلاحها على مدار الساعة طوال أيام الأسبوع لضمان عمل الرافعات الجسرية في أفضل حالاتها.

تأتي منتجات Tebo lift بضمان لمدة 5 سنوات على الهيكل الرئيسي وضمان لمدة عام على المكونات الكهربائية. إذا كانت هناك أي مشكلة غير ناتجة عن عوامل بشرية خلال هذه الفترة ، فسنرسل لك أجزاء مصعد شحن مناسبة مجانًا.

مع تيبوليفت رافعة الجسر الحلول ، يمكن للعملاء أن يطمئنوا إلى أن لديهم حلولًا مخصصة عالية الجودة من شأنها تحسين كفاءتهم وإنتاجيتهم.
