عربة الطعام يرفع

Our dumbwaiter lift offers seamless transportation for homes and businesses. It efficiently moves groceries, laundry, and items between floors, fitting into compact spaces and suiting various building types like homes, restaurants, and hospitals.
Travel height1-15m
Load capacity50-250kg
Lift Speed0.4m/s
Materialstainless steel
Power380 volts, 3 phases, 50 hertz
CertificationISO/CE/CU-TR/TUV/B

Buy Dumbwaiter Lift Guide

If you manage a multi-story establishment, you know how important it is to have a reliable, efficient way of moving goods between floors. Dumbwaiter lifts are an excellent solution for this need, providing a cost-effective, space-saving option for transporting items such as food, laundry, or documents. However, choosing the right dumbwaiter lift for your business requires careful consideration of several factors. In this comprehensive guide, we will cover everything you need to know to make an informed decision when purchasing a dumbwaiter lift.

A dumbwaiter lift is a small, vertical freight elevator designed to transport goods and materials between different floors of a building. They are usually smaller than regular passenger elevators and can carry loads of up to several hundred pounds. Dumbwaiter lifts can be operated manually or automatically and are commonly used in commercial and residential buildings.

Dumbwaiter lift can be classified based on their drive system, control mechanism, and capacity. There are two types of drive systems: traction and hydraulic. Traction dumbwaiter lifts use a cable and pulley system, while hydraulic dumbwaiter lifts use a hydraulic piston to move the platform up and down. Dumbwaiter lifts can be controlled manually or automatically. Finally, dumbwaiter lifts can be classified based on their weight capacity.

The cost of a dumbwaiter lift depends on several factors, such as the type of lift, the size, and the installation location. On average, a basic dumbwaiter lift can cost between $2,000 and $5,000.

Installing a dumbwaiter lift requires professional installation by a licensed and experienced contractor. The installation process involves several steps, including selecting the right type of lift, preparing the site, installing the lift components, and connecting the electrical wiring. The installation process typically takes several days to complete.

Regular maintenance is essential to ensure that a dumbwaiter lift operates safely and reliably. Routine maintenance tasks include inspecting the lift’s components, cleaning the lift’s interior, and lubricating the moving parts. It’s also important to perform regular safety checks to ensure that the lift’s safety features, such as emergency stop buttons and door sensors, are working correctly.

طلب

Dumbwaiter lifts are widely used in restaurant kitchen, school, Canteen or hotel, or some special designing building with single canteen.
Tebo lift Dumbwaiter application
Tebo lift Dumbwaiter application3
Tebo lift Dumbwaiter application2

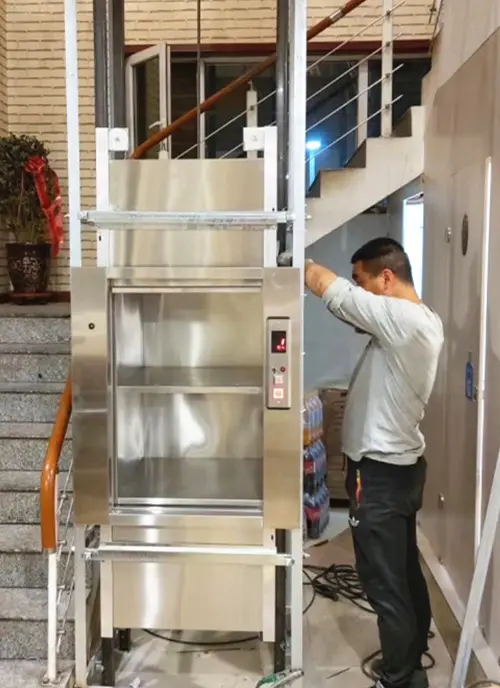

Dumbwaiter lift installation

تصميم مخصص ثلاثي الأبعاد

يمكن أن يساعد التصميم المخصص ثلاثي الأبعاد العملاء على فهم المنتج بشكل أفضل ، وفي نفس الوقت يمكن تخصيص المنتج وفقًا لمعايير مختلفة.
Tebo lift Dumbwaiter 3D
Tebo lift Dumbwaiter 3D02
Tebo lift Dumbwaiter 3D03
Tebo lift Dumbwaiter 3D04

حدود

نموذجCapacity(KG)Cabin size(mm)StopsTraveling(m)مدخلات الطاقة (فولت)
TBDW0.1-250-250kg(400~800)x(400~800)21-15m110V~460V
TBDW0.1-350-250kg(400~800)x(400~800)31-15m110V~460V
TBDW0.1-450-250kg(400~800)x(400~800)41-15m110V~460V
TBDW0.1-550-250kg(400~800)x(400~800)51-15m110V~460V
TBDW0.1-650-250kg(400~800)x(400~800)61-15m110V~460V
TBDW0.1-750-250kg(400~800)x(400~800)71-15m110V~460V
TBDW0.1-850-250kg(400~800)x(400~800)81-15m110V~460V
TBDW0.1-950-250kg(400~800)x(400~800)91-15m110V~460V

ميزة الميزات

✅Fixed lifting equipment andnot entry allowed
✅Mechanical emergency door opening switch(key).
✅Power phase shortage protection.
✅Electric door locking system and Electric door safety sensor
✅Speed governor (Optional).
✅Emergency stop system.
✅Maintenance working switch.
✅Arrival bell device.
✅Overloaded protect.
✅high safety,smooth running,accurate leveling,easy operation.
✅Error display screen.
✅Motor brake.



tractor

Tractor

level switch

Travel switch

guide shoe

Piston shoes

guide rail

Guide rail

sensor

Inductive switch

counterweight frame

Balancing weight

عزز إنتاجيتك مع حلولنا.

قم بتحسين مناولة المواد الخاصة بك من خلال حلولنا المتقدمة. تواصل معنا للحصول على دعم مخصص.

توفر Tebolift تصميمات مخصصة لحلول الرافعات الجسرية التي تلبي المتطلبات المحددة للصناعات المختلفة. لديهم فريق من المصممين ذوي الخبرة الذين يمكنهم العمل مع العملاء لتطوير أنسب حلول الرافعات بناءً على احتياجاتهم وميزانيتهم.

تقدم Tebolift حلول رافعة جسرية عالية الجودة متينة وموثوقة. منتجاتها مصنوعة باستخدام أحدث التقنيات وهي مصممة لتحمل الاستخدام الكثيف لفترات طويلة. كما أنها تأتي مع شهادات CE ، و FDA ، و ISO ، و SGS ، مما يضمن جودة عالية.

توفر Tebolift خدمات التركيب والصيانة الاحترافية للرافعات الجسرية. لديهم فريق من الفنيين ذوي الخبرة الذين يمكنهم تركيب وصيانة الرافعات الجسرية للتأكد من أنها تعمل في أفضل حالاتها. كما أنها توفر تدريبًا في الموقع للمستخدمين النهائيين للتأكد من فهمهم لكيفية تشغيل الرافعة بأمان.

يقدم فريق الخبراء التقنيين في Tebolift الدعم للعملاء قبل الشراء وبعده. يقدمون المشورة وخيارات استكشاف الأخطاء وإصلاحها على مدار الساعة طوال أيام الأسبوع لضمان عمل الرافعات الجسرية في أفضل حالاتها.

تأتي منتجات Tebo lift بضمان لمدة 5 سنوات على الهيكل الرئيسي وضمان لمدة عام على المكونات الكهربائية. إذا كانت هناك أي مشكلة غير ناتجة عن عوامل بشرية خلال هذه الفترة ، فسنرسل لك أجزاء مصعد شحن مناسبة مجانًا.

مع تيبوليفت رافعة الجسر الحلول ، يمكن للعملاء أن يطمئنوا إلى أن لديهم حلولًا مخصصة عالية الجودة من شأنها تحسين كفاءتهم وإنتاجيتهم.
