If you are looking for an efficient and reliable way to handle heavy loads in your industrial or manufacturing facility, then a European bridge crane might be the perfect solution.
These cranes are known for their durability, versatility, and high load capacity, making them a popular choice among businesses worldwide.
In this article, we will provide you with a comprehensive guide to European bridge cranes, including their types, specifications, and benefits.
1. Introduction
European bridge cranes are overhead cranes that are designed to move heavy loads across a facility. These cranes are typically used in manufacturing plants, warehouses, and other industrial settings to lift and transport heavy materials. European bridge cranes are known for their high load capacity, durability, and versatility, which makes them an excellent choice for businesses that require heavy lifting and handling of materials.
2. What is a European Bridge Crane?

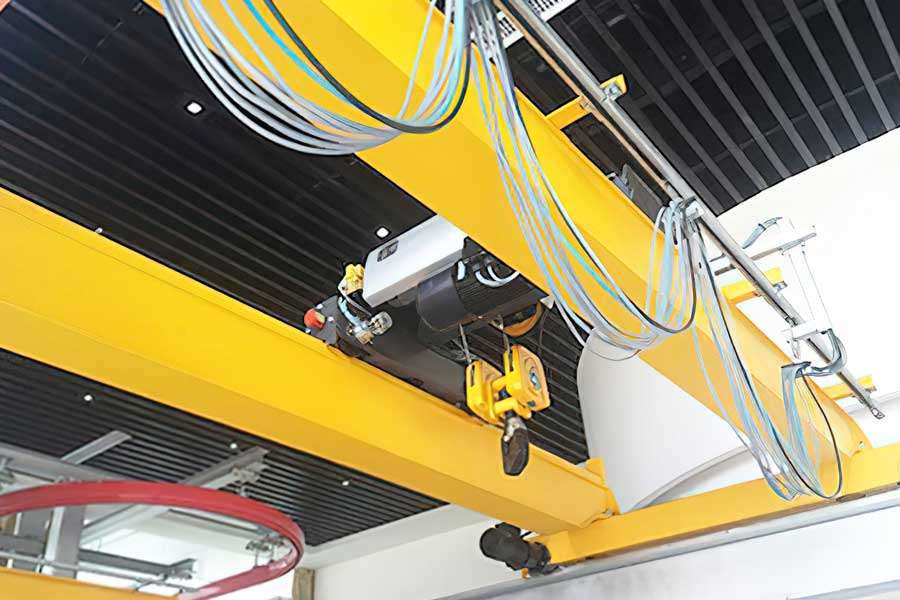

A European bridge crane is a type of overhead crane that is designed to lift and move heavy loads across a facility. These cranes consist of a bridge girder that spans the width of the facility and is supported by two end trucks. The bridge girder is equipped with a hoist that can move back and forth along the length of the girder, allowing it to lift and transport heavy loads.
3. Types of European Bridge Cranes
There are several types of European bridge cranes, each designed for specific applications. The most common types of European bridge cranes include:
3.1 Single Girder Bridge Cranes
Single girder bridge cranes are designed to handle lighter loads and are commonly used in smaller facilities. These cranes consist of a single bridge girder that is supported by two end trucks and is equipped with a hoist.
3.2 Double Girder Bridge Cranes
Double girder bridge cranes are designed to handle heavier loads and are commonly used in larger facilities. These cranes consist of two bridge girders that are supported by two end trucks and are equipped with a hoist.
3.3 Under Running Bridge Cranes
Under running bridge cranes are designed to move loads beneath the crane itself. These cranes are typically used in facilities with limited headroom.
3.4 Top Running Bridge Cranes
Top running bridge cranes are designed to move loads above the crane itself. These cranes are typically used in larger facilities with higher headroom.

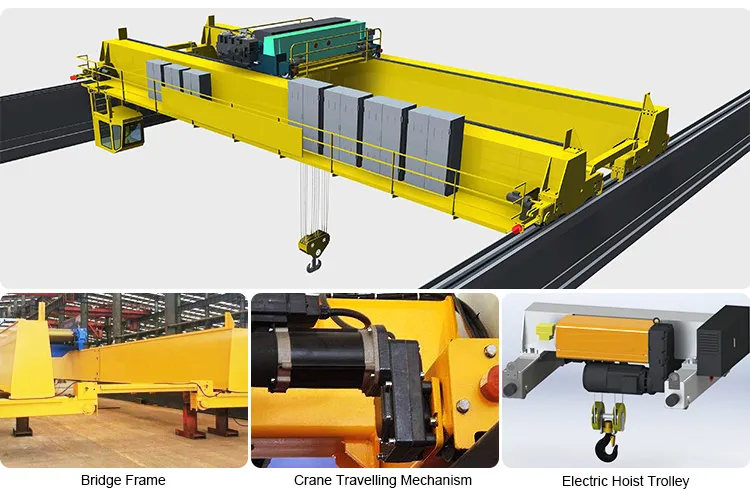

4. Components of a European Bridge Crane
A European bridge crane consists of several components that work together to lift and transport heavy loads across a facility. The main components of a European bridge crane include:
4.1 Hoist
The hoist is the lifting mechanism of the crane that is used to lift and transport heavy loads. It consists of a motor, brake, gearbox, drum, and wire rope. The hoist can be operated manually or through an electrical control system.
4.2 End Trucks
The end trucks are the components that support the bridge girder and allow it to move back and forth across the facility. They consist of wheels and a motorized drive mechanism that moves the crane along the runway.
4.3 Bridge Girder
The bridge girder is the main horizontal beam that spans the width of the facility and supports the hoist. It is designed to withstand heavy loads and is usually made of steel.
4.4 Runway
The runway is the track that the crane moves along. It is usually made of steel and is designed to withstand the weight of the crane and the loads it carries.
4.5 Controls
The controls are the electrical or manual devices used to operate the crane. They can include push-button pendant controls, radio remote controls, or computer-based systems.
5. Specifications of European Bridge Cranes
| European Bridge Crane Parameters: | |||||||
Span(m) | 9.5 | 11 | 12.5 | 16 | 19.5 | 22.5 | 24 |
Lifting Height(m) | 6 9 12 15 18 | ||||||
Working Group | A5(2m) | ||||||
Lifting Speed(m/min) | 0.5/5 | ||||||
Hoist Weight(kg) | 928 | ||||||
Crane Weight(kg) | 3260 | 3596 | 3896 | 4889 | 5913 | 7527 | 7975 |
Track(recommend) | P24/P30/P38 | ||||||
Power Rate(kw) | 12.66 | ||||||
Max Wheel Load(kn) | 51.85 | 54.44 | 57.7 | 60.83 | 64 | 67.26 | 71.36 |
European bridge cranes come in a variety of specifications to suit different applications. The most common specifications include:
5.1 Load Capacity
The load capacity of a European bridge crane refers to the maximum weight it can lift and transport. Load capacities can range from a few hundred pounds to several tons, depending on the size and type of crane.
5.2 Span
The span of a European bridge crane refers to the distance between the two end trucks that support the bridge girder. Spans can range from a few feet to several hundred feet, depending on the size of the facility and the application.
5.3 Lifting Height
The lifting height of a European bridge crane refers to the maximum height it can lift a load. Lifting heights can range from a few feet to several hundred feet, depending on the size and type of crane.
5.4 Speed
The speed of a European bridge crane refers to the maximum speed at which it can move along the runway. Speeds can range from a few feet per minute to several hundred feet per minute, depending on the size and type of crane.
5.5 Duty Cycle
The duty cycle of a European bridge crane refers to the amount of time it can operate without overheating or experiencing mechanical problems. Duty cycles can range from a few hours to several days, depending on the size and type of crane.
6. Benefits of European Bridge Cranes
European bridge cranes offer several benefits to businesses that require heavy lifting and handling of materials. Some of the main benefits include:
6.1 Increased Efficiency
European bridge cranes can move heavy loads quickly and efficiently, reducing the time and effort required to move materials around a facility. This can result in increased productivity and efficiency.
6.2 Improved Safety
European bridge cranes are designed to lift and transport heavy loads safely and efficiently, reducing the risk of accidents and injuries in the workplace.
6.3 Reduced Downtime
European bridge cranes can help reduce downtime in a facility by quickly moving materials from one location to another. This can help improve the flow of work and reduce delays in production.
6.4 Versatility
European bridge cranes can be used for a variety of applications, from lifting and transporting raw materials to moving finished products around a facility. This makes them a versatile and useful tool for many different types of businesses.
6.5 Lower Maintenance Costs
European bridge cranes are designed to be durable and long-lasting, reducing the need for costly maintenance and repairs. This can help businesses save money on maintenance costs over the lifespan of the crane.
7. Conclusion
European bridge cranes are an essential tool for businesses that require heavy lifting and material handling. They come in a variety of types and specifications to suit different applications, and offer several benefits such as increased efficiency, improved safety, and reduced downtime. When choosing a European bridge crane, it is important to consider the load capacity, span, lifting height, speed, and duty cycle to ensure that it meets the specific needs of your business.
8. FAQs
1.What is a European bridge crane?
A European bridge crane is a type of overhead crane that is commonly used for lifting and transporting heavy loads in manufacturing and industrial facilities.
2.What are the components of a European bridge crane?
The components of a European bridge crane include the hoist, end trucks, bridge girder, runway, and controls.
3.What are the benefits of using a European bridge crane?
Some of the main benefits of using a European bridge crane include increased efficiency, improved safety, reduced downtime, versatility, and lower maintenance costs.
4.How do I choose the right European bridge crane for my business?
When choosing a European bridge crane, it is important to consider the load capacity, span, lifting height, speed, and duty cycle to ensure that it meets the specific needs of your business.
5.Can a European bridge crane be customized to suit my specific needs?
Yes, European bridge cranes can be customized to suit the specific needs of your business. This can include modifications to the load capacity, span, lifting height, and controls to meet your unique requirements.
We hope that this guide has been helpful in educating you on the various types, specifications, and benefits of European Bridge Cranes. As you venture into the market to find cranes for your business needs, remember to keep in mind the factors we have highlighted here.
For reliable and high-quality European Bridge Cranes, look no further than Tebo Lift. Our vast experience and expertise have made us one of the most trusted names in the industry. Contact us today to learn more about our bridge cranes and to get started on improving your business operations.
