Cargo lift with shutter doors

Cargo lift with shutter doors is a mechanical equipment for cargo lifting and lowering powered by hydraulic cylinders, no need to dig a pit. Rail cargo lifts operate safely through chains and wire steel ropes, with a maximum load capacity of 30ton and a lifting height of up to 20m. It’s overhead height is unlimited and can be customized according to needs, which is convenient, fast and practical.

Buy Cargo Lift With Shutter Doors Guide

A cargo lift with shutter doors is a type of freight elevator used to transport goods and materials vertically between different levels of a building or warehouse using railway tracks. These lifts come in various sizes and load capacities are typically operated by a hydraulic or mechanical system. They are designed to make the transportation of heavy materials faster, safer, and more efficient.

A cargo lift with shutter doors with high precision hydraulic transmission, high strength chain driven, double chain lifting, adjustable screw, large-capacity pumping station and low-sound operation. The lift operates using hydraulic cylinders, electric motors, or air compressors to raise the car to the desired height. Rail car lifts are commonly used in the car4S shop, large repair shop, large model car park, etc. for the vehicle to elevate or three-dimensional park, can also be used on cargo.

Cargo lifts can be classified based on their lifting capacity, lifting height, and size. The most common types include: One piston rail cargo lift, Two pistons rail cargo lift, Rail cargo lifts with mesh shaft, Rail cargo lifts with steel board shaft, Rail cargo lifts with shutter doors, Rail cargo lifts with rapid doors.

The cost of a cargo lift with shutter doors depends on various factors, including its load capacity, type, size, and installation requirements. On average, a standard rail cargo lift can cost anywhere from $3,500 to $10,000 or more. However, the price can increase depending on the lift’s specifications, appearance and customization needs.

Installing a cargo lift with shutter doors requires expertise and knowledge of the specific lift’s requirements and the building’s structural design. It is crucial to ensure that avoid damage to the lift and accidents during installation. The following are some general steps for installation a cargo lift: Design and manufacture the specific lift. Site inspection and preparation. Install the lift’s rails and platform, hydraulic or mechanical connection. Testing and commissioning.

Regular maintenance is crucial for the safe and efficient operation of a cargo lift. The maintenance requirements will depend on the specific type of lifts. The following are some general tips to maintain your cargo lift: Conduct regular inspection. Lubricate the lift’s moving parts to prevent corrosion. Check any loose bolts or screws. Clean the lift’s platform and rails to remove dirt and debris. Schedule annual maintenance and service checks with a qualified technician.

Application

Rail cargo lifts are widely used in the chemical plants, power plants, nuclear factories, explosives and other explosion-proof enterprises.
Tebo Lift Rail cargo shutter door application
Tebo Lift Rail cargo shutter door application02
Tebo Lift Rail cargo shutter door application03

3D CUSTOM DESIGN

3D custom design can help customers better understand the product, and at the same time can customize the product according to different parameters.

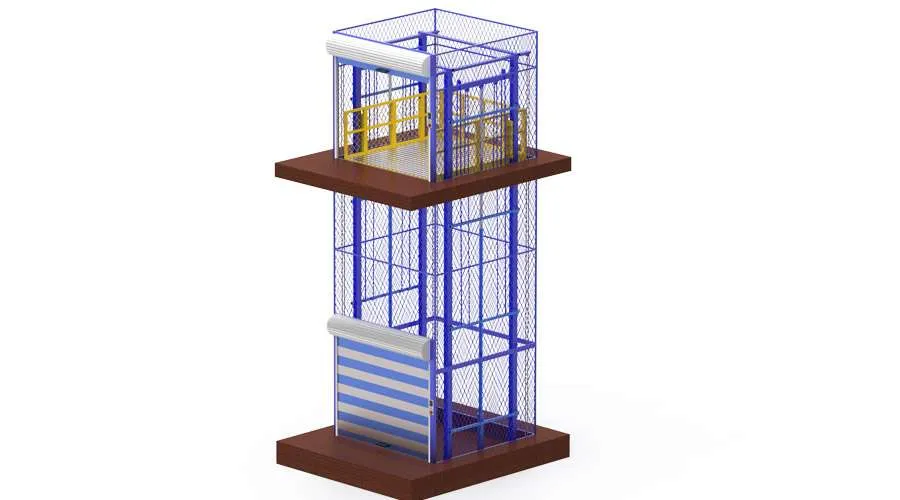

Tebo Lift Rail cargo shutter door 3D

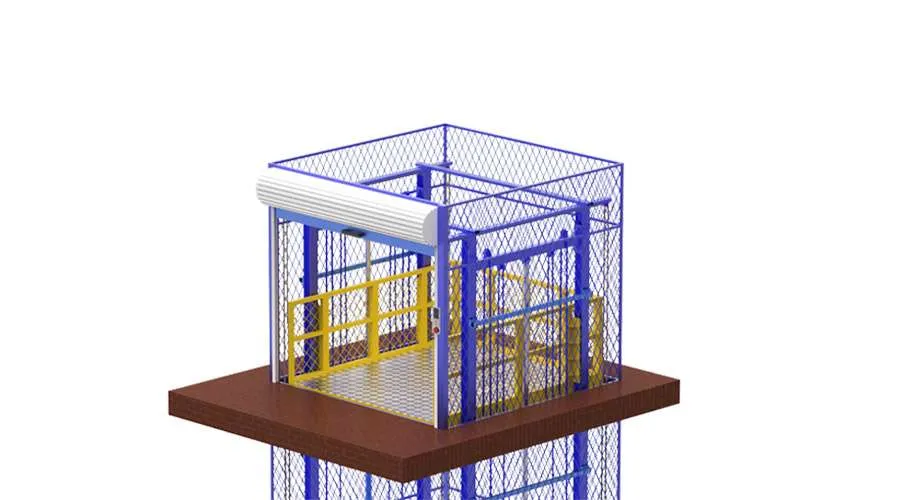

Tebo Lift Rail cargo shutter door 3D02

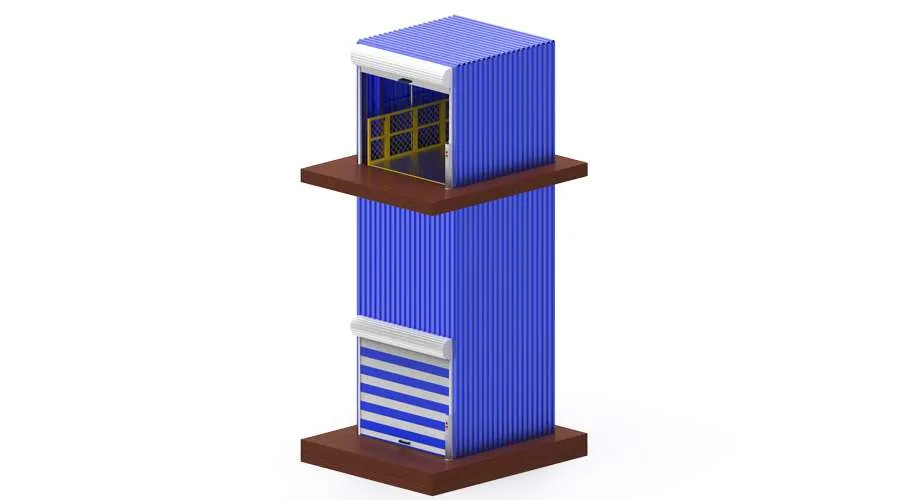

Tebo Lift Rail cargo shutter door 3D03

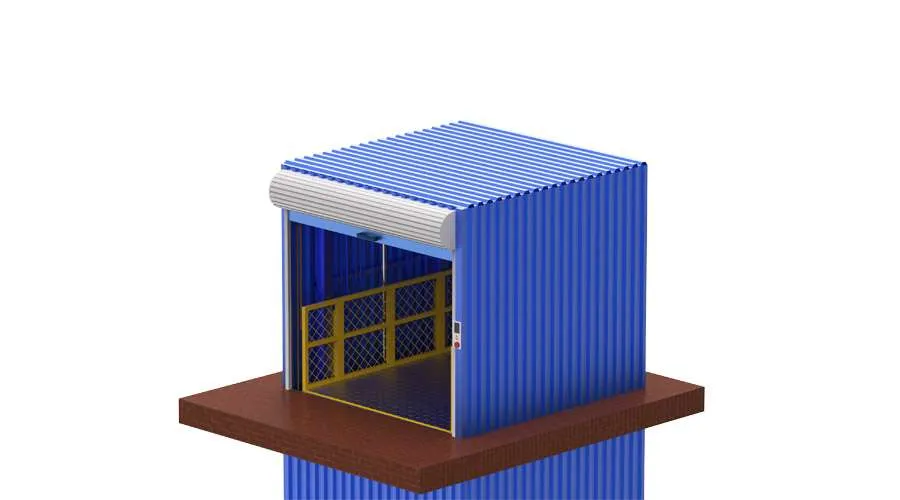

Tebo Lift Rail cargo shutter door 3D04

Paramenters

ModelCapacity(KG)Traveling height(mm)Platform size(WxD)Input power(Volt)
TBC03-33000~40003000(2200~3000)mmx(5000~6000)mm110V~460V
TBC03-43000~40003000(2200~3000)mmx(5000~6000)mm110V~460V
TBC03-53000~40003000(2200~3000)mmx(5000~6000)mm110V~460V
TBC03-63000~40003000(2200~3000)mmx(5000~6000)mm110V~460V
TBC03-73000~40003000(2200~3000)mmx(5000~6000)mm110V~460V
TBC03-83000~40003000(2200~3000)mmx(5000~6000)mm110V~460V
TBC03-93000~40003000(2200~3000)mmx(5000~6000)mm110V~460V
TBC03-103000~40003000(2200~3000)mmx(5000~6000)mm110V~460V

Features Advantage

✅Large capacity, the maximum loading capacity can up to 100ton.
✅Suitable for various environments and heavy-duty lifting.
✅Flexible to design and production, can be customized.
✅Complete standard configuration, stable operation.
✅Durable, corrosion-resistant high-quality steel.
✅Simple maintenance, low cost.
✅Rigorous safety features.
✅Simple to installation.

pump station
AC contactor
remote control
power
limit switch
Circuit breaker

Enhance your productivity with our solutions.

Optimize your material handling with our advanced solutions. Reach out to us for tailored support.

Tebolift provides customized designs for bridge crane solutions that meet specific requirements of different industries. They have a team of experienced designers who can work with customers to develop the most appropriate crane solutions based on their needs and budget.

Tebolift offers high-quality bridge crane solutions that are durable and reliable. Their products are made using the latest technology and are designed to withstand heavy usage over long periods. They also come with CE, FDA, ISO, and SGS certificates, ensuring top-notch quality.

Tebolift provides professional installation and maintenance services for bridge cranes. They have a team of experienced technicians who can install and maintain bridge cranes to ensure they operate at their best. They also offer on-site training for end-users to ensure they understand how to operate the crane safely.

Tebolift’s team of technical experts provide customers with support before and after purchase. They offer advice and troubleshooting options 24/7 to ensure that the bridge cranes operate at their best.

Tebolift products come with a 5-year warranty on the main structural components of indoor bridge cranes. If there is any problem not caused by human factors during this period, Tebolift will send suitable crane parts free of charge.

With Tebolift’s Bridge Crane Solutions, customers can rest assured that they have high-quality, customized solutions that will improve their efficiency and productivity.
