Food elevator

Our food elevator provides an effortless transportation solution for your business or home needs. With a weight capacity of up to 250kg, it can transport groceries, laundry, and other goods between floors with ease. Its compact size allows it to fit in small spaces and can be installed in any type of building,such as homes,restaurants,hospitals,etc.

Buy Food Elevator Guide

If you manage a multi-story establishment, you know how important it is to have a reliable, efficient way of moving goods between floors. Food elevators are an excellent solution for this need, providing a cost-effective, space-saving option for transporting items such as food, laundry, or documents. However, choosing the right food elevator for your business requires careful consideration of several factors. In this comprehensive guide, we will cover everything you need to know to make an informed decision when purchasing a dumbwaiter lift.

A food elevator is a small, vertical freight elevator designed to transport goods and materials between different floors of a building. They are usually smaller than regular passenger elevators and can carry loads of up to several hundred pounds. Food elevator can be operated manually or automatically and are commonly used in commercial and residential buildings.

Food elevator can be classified based on their drive system, control mechanism, and capacity. There are two types of drive systems: traction and hydraulic. Traction food elevators use a cable and pulley system, while hydraulic food elevators use a hydraulic piston to move the platform up and down. Food elevators can be controlled manually or automatically. Finally, food elevators can be classified based on their weight capacity.

The cost of a food elevator depends on several factors, such as the type of lift, the size, and the installation location. On average, a basic food elevator can cost between $2,000 and $5,000.

Installing a food elevator requires professional installation by a licensed and experienced contractor. The installation process involves several steps, including selecting the right type of lift, preparing the site, installing the lift components, and connecting the electrical wiring. The installation process typically takes several days to complete.

Regular maintenance is essential to ensure that a food elevator operates safely and reliably. Routine maintenance tasks include inspecting the lift’s components, cleaning the lift’s interior, and lubricating the moving parts. It’s also important to perform regular safety checks to ensure that the lift’s safety features, such as emergency stop buttons and door sensors, are working correctly.

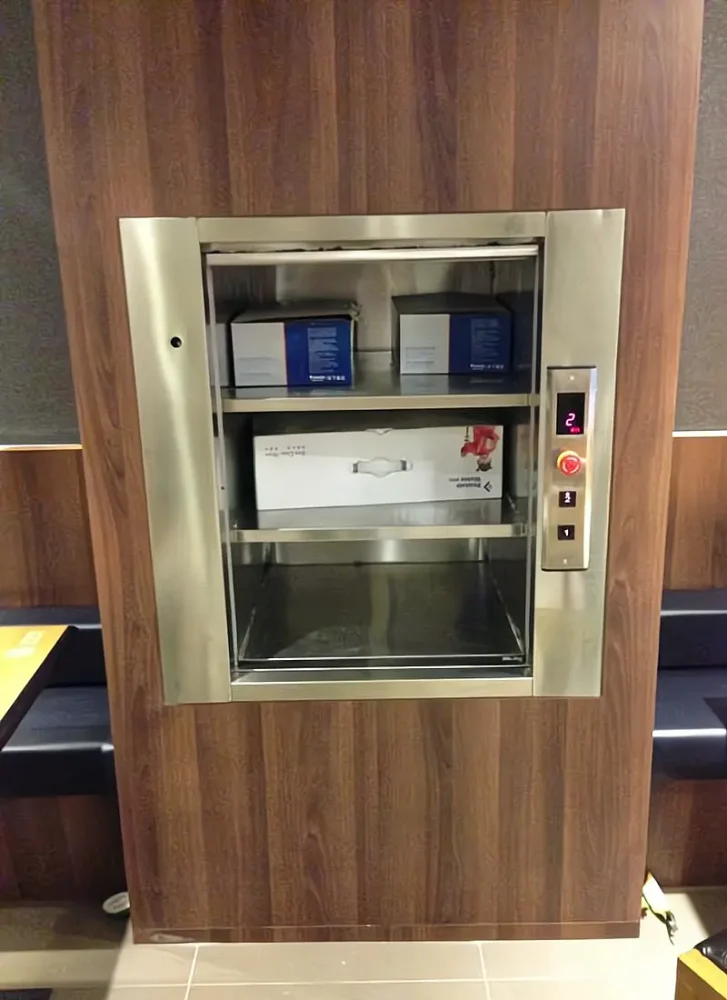

Application

Food elevators are widely used in restaurant kitchen, school, canteen or hotel, or some special designing building with single canteen.
Tebo lift Dumbwaiter application
Tebo lift Dumbwaiter application3
Tebo lift Dumbwaiter application2
TEBO food elevator application

3D CUSTOM DESIGN

3D custom design can help customers better understand the product, and at the same time can customize the product according to different parameters.

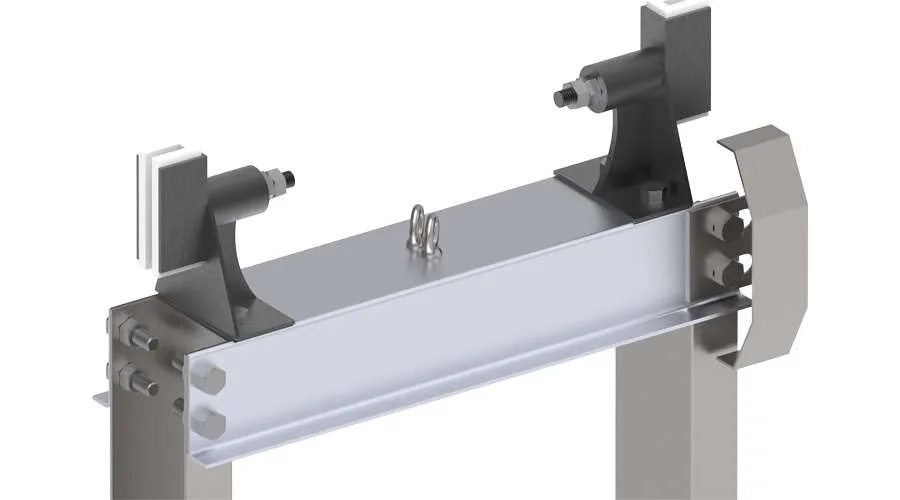

Tebo lift Dumbwaiter 3D
Tebo lift Dumbwaiter 3D02
Tebo lift Dumbwaiter 3D03
Tebo lift Dumbwaiter 3D04

Paramenters

ModelCapacity(KG)Cabin size(mm)StopsTraveling(m)Input power(Volt)
TBDW0.1-2100(400~800)x(400~800)23~30110V~460V
TBDW0.1-3100(400~800)x(400~800)33~30110V~460V
TBDW0.1-4100(400~800)x(400~800)43~30110V~460V
TBDW0.1-5100(400~800)x(400~800)53~30110V~460V
TBDW0.1-6100(400~800)x(400~800)63~30110V~460V
TBDW0.1-7100(400~800)x(400~800)73~30110V~460V
TBDW0.1-8100(400~800)x(400~800)83~30110V~460V
TBDW0.1-9100(400~800)x(400~800)93~30110V~460V

Features Advantage

✅Fixed lifting equipment andnot entry allowed
✅Mechanical emergency door opening switch(key).
✅Power phase shortage protection.
✅Electric door locking system and Electric door safety sensor
✅Speed governor (Optional).
✅Emergency stop system.
✅Maintenance working switch.
✅Arrival bell device.
✅Overloaded protect.
✅high safety,smooth running,accurate leveling,easy operation.
✅Error display screen.
✅Motor brake.

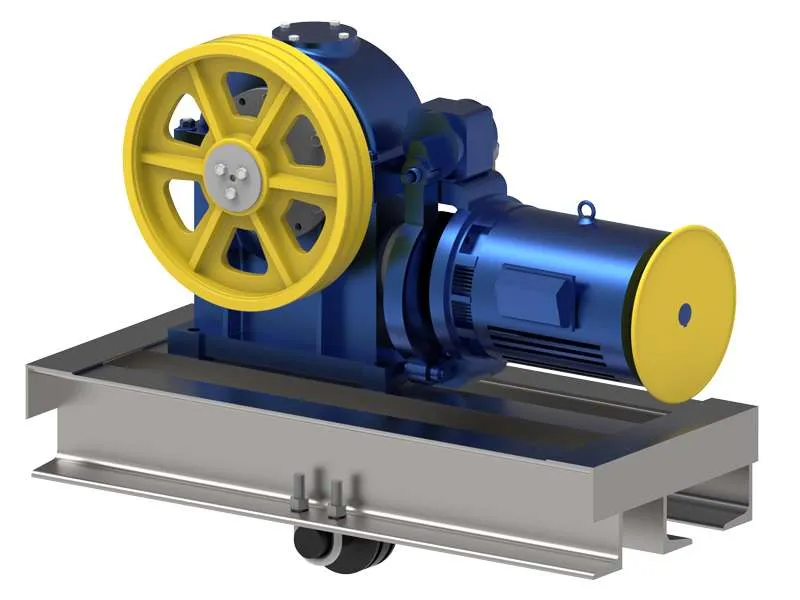

tractor

Tractor

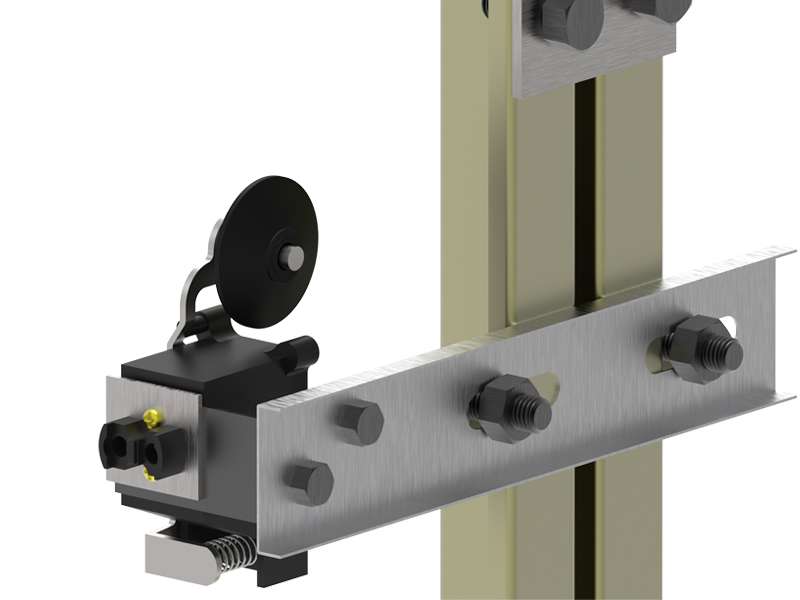

level switch

Travel switch

guide shoe

Piston shoes

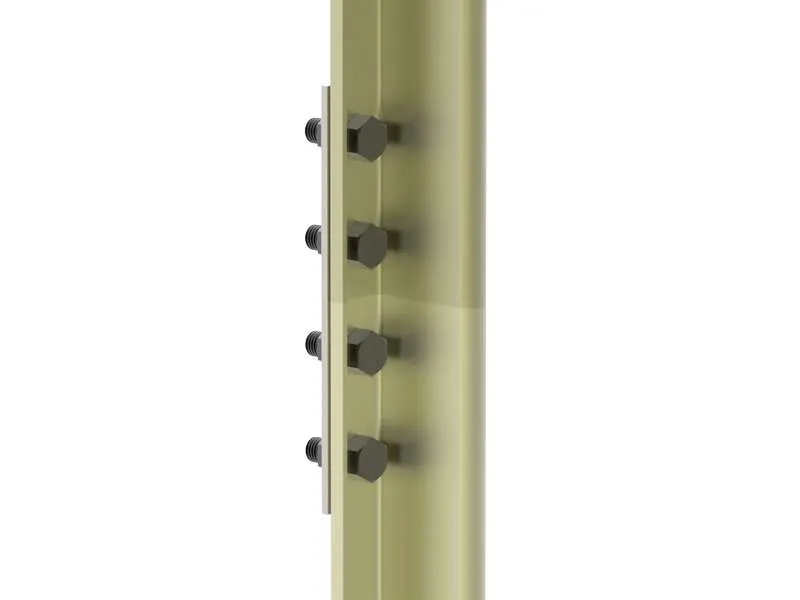

guide rail

Guide rail

sensor

Inductive switch

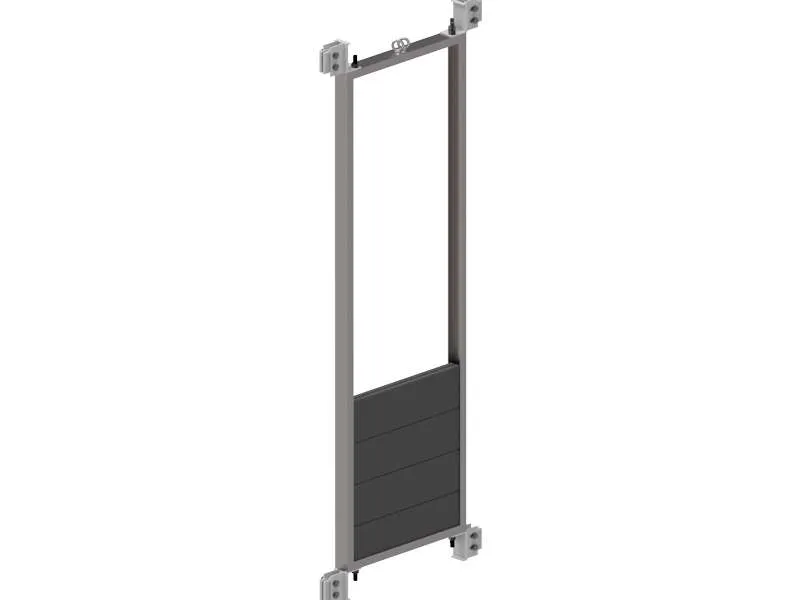

counterweight frame

Balancing weight

Enhance your productivity with our solutions.

Optimize your material handling with our advanced solutions. Reach out to us for tailored support.

Tebolift provides customized designs for bridge crane solutions that meet specific requirements of different industries. They have a team of experienced designers who can work with customers to develop the most appropriate crane solutions based on their needs and budget.

Tebolift offers high-quality bridge crane solutions that are durable and reliable. Their products are made using the latest technology and are designed to withstand heavy usage over long periods. They also come with CE, FDA, ISO, and SGS certificates, ensuring top-notch quality.

Tebolift provides professional installation and maintenance services for bridge cranes. They have a team of experienced technicians who can install and maintain bridge cranes to ensure they operate at their best. They also offer on-site training for end-users to ensure they understand how to operate the crane safely.

Tebolift’s team of technical experts provide customers with support before and after purchase. They offer advice and troubleshooting options 24/7 to ensure that the bridge cranes operate at their best.

Tebolift products come with a 5-year warranty on the main structural components of indoor bridge cranes. If there is any problem not caused by human factors during this period, Tebolift will send suitable crane parts free of charge.

With Tebolift’s Bridge Crane Solutions, customers can rest assured that they have high-quality, customized solutions that will improve their efficiency and productivity.
